Highlight:
Condition: |
New |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2023 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Pressure Vessel, Gear |
Warranty: |
1 Year |
Power (kW): |
40.7 |
Weight (KG): |
3000 |
Key Selling Points: |
Long Service Life |
Applicable Industries: |
Machinery Repair Shops, Manufacturing Plant, Energy & Mining |
Showroom Location: |
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico |
Name: |
2.5mm Copper Wire Cable Granulator Recycling Machines |
Type: |
Copper Wire Recycling |
Application: |
Electrical Appliances |
Keyword: |
Electric Wire Grinder And Separator |
Suitable For: |
Cable Wire Scrap Shredding |
Function 1: |
Scrap Copper Cable Crusher And Separator |
Capacity: |
50-70kg/h |
Separation Rate: |
99.98% Separating Machine |
Key Words: |
Copper Wire Cable Granulator Recycling Machines |
Function: |
Recycling Copper Wires Cable |
Port: |
Qingdao, Shanghai, Gangzhou |
Mob: |
0086-17398977463 |
Contact: |
Sale@paibomac.com |
Tel.: |
0086-17398977463 |

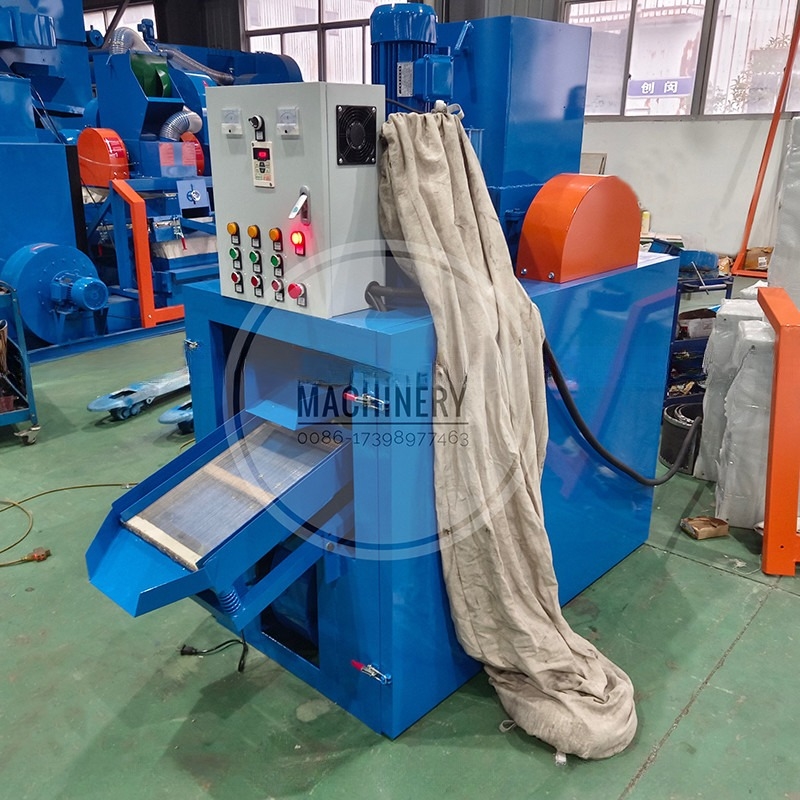

Electrical Appliances Waste Scrap Cable Copper Wire Stripping Machines at Affordable
CCompetitive Price Copper Cable Wire Granulator Machine for Wire Recycling Grinder
The waste cables or wires will become plastic pellets and copper particles after been crushed. The mixture will jump and move ahead like wave on the vibrating screen surface. With airflow function and screen box straight shock excitation, the sheath and core will be separated, and get copper particles, plastic pellets and mixture from different outlet areas.
The copper cable granulator adopts advanced design, rational structure and reliable operation.
The machine includes the function of crushing, vibrating & seperating and dust collection.
Put the waste wires into the machine, the outlet will be plastic pellets and copper particles.
The purity can be up to 99%.
How to Operation The Cable Granulator Recycling Machines:
- Put the cables into the feed hole, the main crusher will crush cables into mixed granules.
- The separation device separates copper and plastic from the crushed mixed particles, and the dust collection system collects dust at the same time.
- Then the vibrating table separates the pure copper for the second time.
Feature of Wire Cable Granulator Recycling Machines:
According to the different specific gravity of copper and plastic, under the action of an eccentric shaft, combined with a fan, the copper and plastic particles are separated and discharged at different discharge ports for classification.
The wind generated by the fan blows down copper and plastic through the separation net. Under the action of the eccentric shaft, heavier copper is discharged at the front port, while lighter plastic is blown up by the wind and discharged at the rear port.
Control switch, easy to operate, with overload protection to protect the normal operation of the machine.Electrical components adopt well-known brands such as Schneider and Delixi
| Specifications parameters |
| Diameter range | for rigid cables <10mm, for flexible cables <20mm |
| Capacity | 40-50kg/h |
| Main motor | 3KW → Low power consumption , Energy conservation |
| Voltage | 3phase or 1phase→ (1phase is spacially designed for family use) |
| Installation Size | 1.1*1.1*1.85m→mini structure,save space |
The advantage of mini cable granulator:
1. Small size, small space.
2. Low investment for machine.
3. Less workers needed
4. High quality machine for long service time
5. Very high purity for copper granules and plastic granules.
6. With dust collector to make sure clean surrounding.
Our company's main business:
- Solid waste recycling and processing equipment,
- copper wire recycling granulator machine
- Electronic waste crushing and sorting equipment and related environmental protection equipment,
- Products include waste cable and wire crushing and sorting equipment,
- Waste circuit board CCL crushing and sorting equipment,
- Aluminum-plastic separation equipment,
Copper wire recycling granulator machine:
- Smallest mini copper wire recycling granulator machine;
- Supports household electricity (single phase electricity) , ideal for home use;
- Mini size and mini capacity, copper wire recycling granulator machine the capacity is about 40-50kg per hour;
- Cheapest and affordable, copper wire recycling granulator machine suitable for wholesale;
- Can be customized as push-wheel type for easy movement.
We can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port byyourself.
FOB:We arrange freight transport to Qingdao,Shang hai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF:We arrange all shipping details to your country
port, and ensure machines smooth arrival.
