Coconut Shell and Wood Biomass Charcoal Pyrolysis Carbonization Furnace for Business

Product Details

Place of Origin: China

Brand Name: PAIBO

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Film package

Delivery Time: 35

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2023
Warranty Of Core Components:	1 Year	Core Components:	Engine, Bearing, Pressure Vessel
Effective Volume:	7CBM	Dimension(LWH):	2.12.22.3m
Voltage:	220V	Power:	25KW
Warranty:	1 Year	Key Selling Points:	Energy Saving
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Food & Beverage Shops, Manufacturing Plant	Showroom Location:	United Kingdom, United States, Russia, Spain
Weight (KG):	5000	Name:	Sawdust Briquette Carbonization Furnace
Raw Material:	Coconut Shell Bamboo Wood	Heating Source:	Biomass, Natural Gas, Diesel, Coal
Material:	Stainless Steel	Product Name:	Biomass Carbonization Furnace
Application Material:	Wood Chips, Coconut Shell,rice Husks, Peanut Shells,	Feature:	Continuous Machine
Usage:	Making Wood Charcoal	Keywords:	Charcoal Furnace
Port:	Qingdao, Shanghai, Gangzhou	Mob:	0086-17398977463
Contact:	Sale@paibomac.com	Tel.:	0086-17398977463

Condition:	New
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2023
Warranty Of Core Components:	1 Year
Core Components:	Engine, Bearing, Pressure Vessel
Effective Volume:	7CBM
Dimension(LWH):	2.12.22.3m
Voltage:	220V
Power:	25KW
Warranty:	1 Year
Key Selling Points:	Energy Saving
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Food & Beverage Shops, Manufacturing Plant
Showroom Location:	United Kingdom, United States, Russia, Spain
Weight (KG):	5000
Name:	Sawdust Briquette Carbonization Furnace
Raw Material:	Coconut Shell Bamboo Wood
Heating Source:	Biomass, Natural Gas, Diesel, Coal
Material:	Stainless Steel
Product Name:	Biomass Carbonization Furnace
Application Material:	Wood Chips, Coconut Shell,rice Husks, Peanut Shells,
Feature:	Continuous Machine
Usage:	Making Wood Charcoal
Keywords:	Charcoal Furnace
Port:	Qingdao, Shanghai, Gangzhou
Mob:	0086-17398977463
Contact:	Sale@paibomac.com
Tel.:	0086-17398977463

Coconut Shell and Wood Biomass Charcoal Pyrolysis Carbonization Furnace for Business

Product Overview

Carbonization Furnace

The continuous charcoal making machine, machine also named continuous pyrolysis furnace is a new type of machine that feeds raw materials and outputs finished materials at the same time.

CARBONIZATION REQUIREMENTS

Biomass particles or e-waste with a particle size of less than 50mm and a moisture content of less than 20% can be directly entered into the first-type machine for carbonization. For example, sawdust, coconut shells, fruit shells, palm shells, etc. can be directly carbonized; larger (50mm or more) raw materials, such as aluminum capacitors, wires, waste clothes, wood branches, etc.,need to be shredded and then carbonized; If the moisture exceeds 30%, it needs to be dried in advance.

PRODUCT DESCRIPTION

Double protection to protect the bodyTake care of your family. It belongs to an external heating drying and carbonization integrated machine.The flue gas generated in the entire production process is self-utilized, and the exhaust gas passes through the flue gas treatment device.

It belongs to an external heating drying and carbonization integrated machine.The flue gas generated in the entire production process is self-utilized, and the exhaust gas passes through the flue gas treatment device.

Processing, does not pollute the environment, after technical improvement, the furnace can also be used to recycle and process electronic waste, and realize the recycling of metals and pyrolysis the plastic into carbon, realizing the sorting of metal and plastic

Applicable materials

1.Metal recycling: aluminum capacitor recycling, circuit board recycling, waste wire recycling.

2..Biomass carbonization: carbonization of biological wastes such as coconut shell, palm shell, sawdust and so on.

3.Recycling waste : clothes to make carbon powder particles

APPLICATIONC

Advantages of Continuous biomass sawdust carbonization furnace

1. Advanced energy-saving charcoal stove smoke-free 2. Wood biomass briquette carbonization stove have an advanced filter. 3. Can be decomposition of the smoke in the water and tar quickly, to smoking, and environmental effects, 4. The carbonizing temperature can be controlled and adjusted; stable structure, long service life, easy operation 5. The final charcoal has the feature of high calorie, low ash content, low smoking etc. 6. Great carbonizing ratio(99%) and short carbonizing time

DETAIL DISPLAY

LENGTH CAN BE CUSTOMIZED

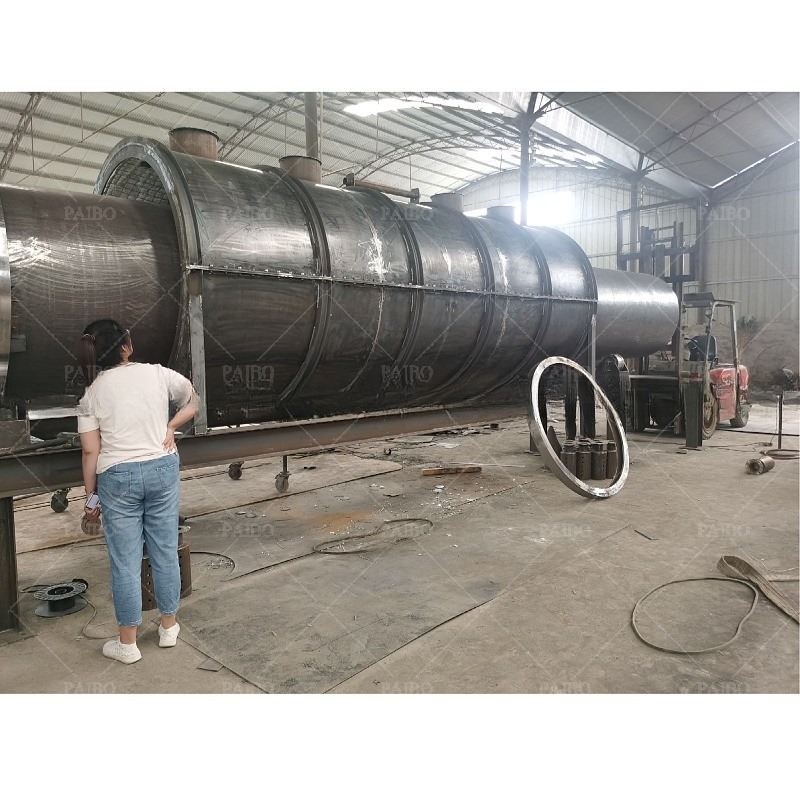

The host part of the pyrolysis furnace is a horizontal cylinder, the diameter of the cylinder is 1000MM, and the length is 10M (can also be customized according to the needs of customers)

HEATING AREA

The middle part of the cylinder is the heating area. This machine uses natural gas, diesel to preheat the cylinder of the host machine (the temperature is generally controlled at 500℃)

A NEW GENERATION OF CARBONIZER

Continuous rotation avoids the fire only burn the same area, greatly prolongs the service life of the machine, and at the same time greatly improves the output material’s uniformity and quality.

ENERGY SAVING & ENVIRONMENTAL PROTECTION

During carbonization or roasting, the burning will generate the combusitble gas which will be lead to bottom of the furnace to get burnt as fuel, and the natual gas's pipe can be closed gradually. Finally the combustible gas in the carbonization process is self-sufficient.

WORK DIAGRAM

Model	UT600	UT800	UT1500
Pipe diameter/mm	800x1200	1000x1500	1200x1800
Equipment output	500-600	800-1000	1200-1500
Liquefaction gas burner	6	6	6
Main burner	1	1	1
Co -burner	1	1	1
Fan	7.5	11	15
Wind turbine	3	3	3
Carbonized furnace host	4	5.5	7.5
Spiral feeder	4	4	4
Cooling carbon machine	3	3	3
Temperature in the furnace	350-850	350-850	350-850
High -temperature carbonization pipeline temperature	500-800	500-800	500-800

Packing and shipping

Package

About Packing, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.
For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, unually it needs wrapped with plasitc firstly, then loaded in container.
We can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.

Our Services

1, 24 hours online .Your inquiry will be quick reply by email .
Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )
2,Professionally and patiently introduction,details pictures and working video to show machine
Service on sale :
1,Test every machine and inspect the machine seriously .
2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok .
3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all
original documents to you by Express For Free.
If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
request . We will tell you the tracking number after delivery.
Service after sale
1, Free insurance for goods
2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video tohelp you solve the problem, or dispatch worker to your factory.

This machine is a customized machine, and the price on Alibaba is just a reference price.
